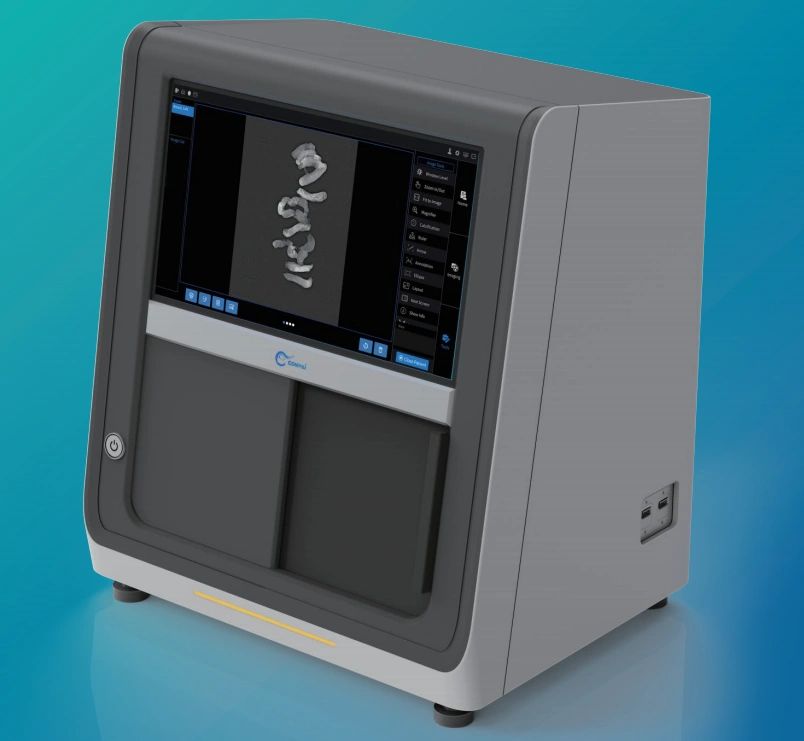

TrueView Core 100Pro
Uses advanced radiography and automated software to precisely identify calcifications in breast biopsy tissue.
Space saving, cost-effective and reliable solution for biopsy specimen radiography in clinic.
Sharp & Clear Imaging for Calcification Identification
Breast Biopsy Specimen Radiography
Technical Details
Digital Image Receptor
Detector Technology
CMOS
Active Imaging Area Size
57mm x 64mm
Pixel Size
49.5 micron
Spatial Resolution
10 lp/mm in 1.0x contact mode
Output Image
14-bit image data
X-Ray Source
Energy Range
10-30KV
X-Ray Tube Target Material
Tungsten
Tube Current
0~1mA
Exposure
Up to 20 mAs
Focal Spot Size
50 micron
Filtration
100 micron beryllium
Acquisition Workstation
Display Monitor
15 inches
Operating System
Windows 10
DICOM Services
Worklist, Print, PACS Store, Query/Retrieve
Memory
8GB
Hard Disk
500GB SSD
User Interface
Touch screen operation
Electrical Requirements
Input Voltage
100V-240V~(+/-10%)
Input Power
not less than 500VA
Frequency
50/60Hz
Exposure Modes
Manual
User selects kV and mAs
Auto
System determines optimum kV and mAs
System Performance
Time To Preview
<20 seconds of AEC mode
Cabinet
Safety Features
Door interlock, Self shielded
Indicators
Power, Door Open, Ready, X-Ray ON
Magnification
Specimen tray positions (auto-sensed) at 1.0x and 1.5x
Physical
Construction
Fully integrated system
Dimensions (W x H x D cm)
46.6 x 53 x 38.4
Weight
38 kg
Request a Demo
TrueView Core 100Pro from CompAI
Best in class Breast Specimen Radiography Equipment
